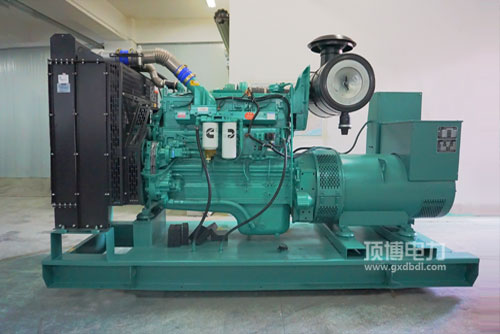

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用启行为然油市场性价比高好: 领先的然油调整机体系，具有的STC、ESTC 等级分类调整机体系，唯一性设计构思的连杆上方丙烷发动机燃烧物室，高压力引射然油，充沛做雾化，丙烷燃烧物充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用热车机瞬态功效优异的: 完美无缺的热车机综合开发，合作康明斯鲜明的EFC系统的，设定精确高，异常日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用汽车发行为升耗油率高: 整体化设定狭窄.样貌现场布置合情合理，运动平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50需求中国国家非路第三方一阶段及中美洲Tier2. Tier 3污染物法律条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件可要性好， 打火机运转及维护养护方便，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率范围之内 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量管理 Dry Weight   940kg

224-310KW康明斯发电机组用打着机的特质：质量分数小， 压缩成比较高， 格珊自然空气高温，方便起动，挪动车载电子供电的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机类型	经常用到输出(kW)Prime Power	紧急电率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
